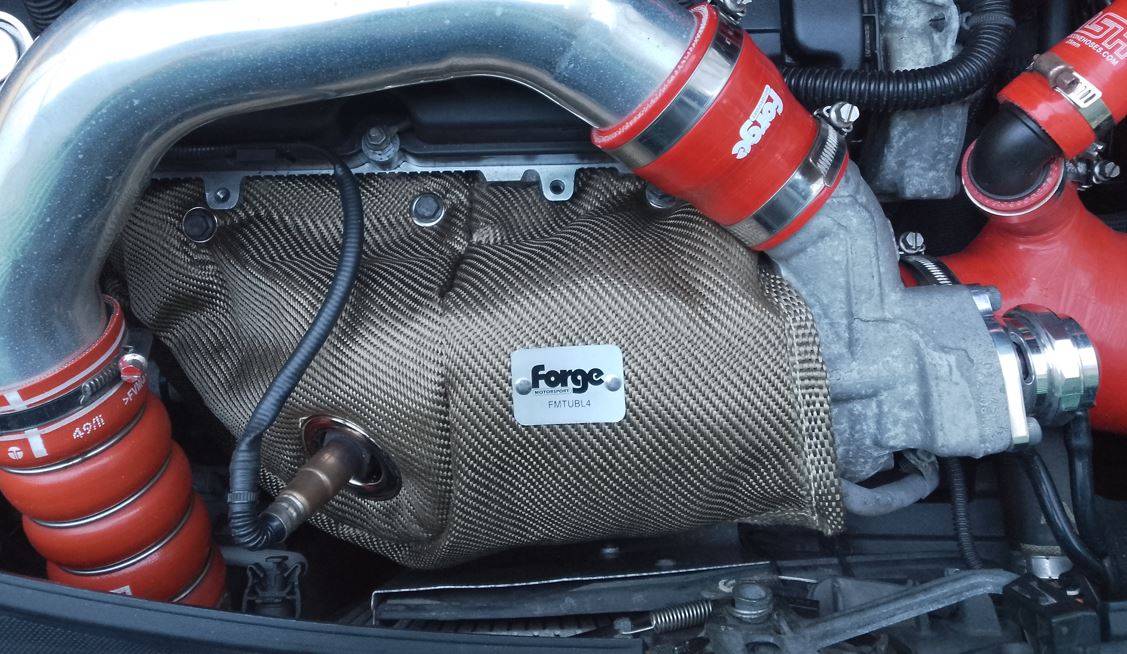

The Forge Motorsport FMTUBL4 has been specifically designed for the Mini R56 stock turbo charger, and also fits the Peugeot 207/208 GTI. This turbo blanket is designed to isolate the radiant heat produced by the turbocharger. The stock Mini heat shield is inadequate and can result in warping the standard air scoop located in the bonnet.
This design has been created to withstand the harshest of environments and proven to withstand temperatures up to 2500 °f of radiant heat which will assist in protecting and prolonging the life of engine components.
Design innovation keeps the heat of the exhaust gases contained within the hot side of the turbocharger, away from the cool side and the intake path which helps reduce turbo lag and air intake temperatures resulting in more power.
Please note that a turbo blanket will lose its flexibility over the first few heat cycles as the material cures, so once fitted it should not be routinely removed as this can cause damage to the blanket.
- Stainless Steel Rivets
- Stainless Steel Fasteners
- Carbon fabric outer shell
- Calcium Magnesium Silicate Wool constructed Inner Core
- High temperature Silica fabric
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Toxicological and Ecological Information
Acute Toxicity: According to its composition, this product should not be harmful in normal conditions of use.
- Inhalation: Possible irritation of respiratory system. At high temperatures, products of thermal decomposition can be irritating to respiratory system.
- Ingestion: Can be considered not harmful if swallowed.
- Skin Contact: Can be considered as non-irritating to skin. Contact with the product, when handled at high temperatures, cause serious burns. At high temperature, products of thermal decomposition can be irritating to skin.
- Eye Contact: Can be considered as non-irritating to eyes. Contact with the product, when handled at high temperatures, can cause serious burns. At high temperature, products of thermal decomposition can be irritating to eyes.
- Ecotoxicity: Inert material. Persistence and degradation: Not biodegradable on the base of its structure.
- The information given in this Material Safety Data Sheet is based on knowledge available at the time of compilation and is intended to describe the product only in terms of health and safety requirements. It does not signify any warranty with regard to specific properties or specifications. The present product is designed for general industrial use.
First Aid Measures:
Eye Contact: Remove particles remaining under the eyelids. Wash well open immediately, abundantly and thoroughly with water. If irritation persists, consult an ophthalmologist.
Skin Contact: Cool skin with cold water after contact with molten compound and remove product with vegetable oil or paraffin. In case of adhesion, do not try to remove the product. Treat the affected areas as thermal burns.
Inhalation: Dust inhalation, inhalation of vapours from heated products, inhalation of vapours due to thermal decomposition. Move to fresh air and in case of persistent problems consults a doctor.
A great product, but a real pain to fit, the instructions given depict a Mini engine bay, not a 208 GTI so there’s additional parts you need to remove to get the OEM shield off. Be prepared for a lot fidgeting and sore hands because there isn’t a lot of wiggle room. The bottom bolts to the shield are a right pain but easier to get to from under the car with some guidance from another person. Fitting the blanket is simple but can be tricky to get properly aligned etc. once it’s all fitted, in my case at least it does smoke, a few drives and it should eventually stop. Particularly there’s plastic film on the forge badge on blanket which will smoke and smell. Overall a great product, just could do with updated instructions. Recommend you definitely tackle this job with an extra set of hands. Good luck if you have big hands
It's a brilliant product but a real pain to fit on an n18 engine just as well I have small arms otherwise it would require taking apart the front bumper as it is I have bruises all over my arms just because of lack of space the front 2 bolts being the worse culprits but really good now it's been fitted
Very impressed. Much bigger than I expected and obviously well put together. Really brightens up the engine bay. Incidentally I couldn’t undo the Lambda nut so instead just disconnected it and passed the end through the heatshield. Worked a treat. After taking it out for a test drive, it did smoke and smell a little but that was expected.
Really nice, good quality product. It fitted perfectly and looks the part.
Really nice, good quality product. It fitted perfectly and looks the part.
May Also Fit
Listed here are the vehicles that we believe this product will fit based on historical experience and using industry parts databases that cross-reference parts and matching vehicles. We have not directly fitted the part to these vehicles so it is not a guarantee that they will fit.
However, at Forge we prefer to work with our customers and reward them for helping confirm a product fits their specific vehicle via our Remote Test Technician program. This rewards you with a 25% discount off your next purchase and enrolment into our VIP Club for extra benefits. If the part does not fit then upon return we will provide you with a full refund and 15% off your next order to show our gratitude. Read about this in full on our Forge Remote Test Technician program page.
- Peugeot RCZ THP 156
- Peugeot RCZ THP 200
Turbo Blanket for Mini, Citroen DS3 (Pre 2016 Only), and Peugeot 207/208 GTI
The majority of Forge Motorsport products come with a limited lifetime warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
For further information, please call our customer service team on +44(0)1452 380999 or email firstname.lastname@example.org.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Next day delivery applies to orders processed before 12 noon Monday to Friday, subject to stock availability and geographical restrictions. 'Next day' refers to next working day. We cannot guarantee next day delivery for orders placed after this time. Whilst we endeavour to honour our next day service, next day delivery cannot be guaranteed due to other extenuating circumstances. Full details
Delivery is free of charge for all orders £100 (ex VAT) or over. Products are sent by standard DPD service which is usually a next day service, but can take 2 days in transit. We reserve the right to ship smaller, lower value items via Royal Mail or any other service. (Not including Scottish Highlands, Scottish Isles, Northern Ireland, Guernsey, Jersey, and Isle of Man where charges will vary).
Europe and Worldwide
Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and destination postcode. Live shipping rates will be calculated at checkout using ShippyPro and dependent on criteria, you will be given the option of DHL, DPD, or FedEx courier services.
Shipping into the EU - Duty Charge Information
All Forge products are sold with a Delivery Duty Unpaid (DDU) status and an import tariff may apply to your order. Customers will be contacted by the Customs and Excise authority in the destination country regarding payment prior to delivery, and it is important that correct contact telephone number and email information be submitted with the order to facilitate this part of the delivery process. Some couriers are charging an admin fee for shipping into the EU.
If we detect at checkout that you are located within the European Union (EU), you are eligible for a contribution towards your import duty and tax payments. We can add an additional 20% on the total cost of your order, we will then pay the duty and tax costs above your contribution. This offer will ensure the price you pay at checkout is the total you pay, with no additional charges. It will also ensure you have the fastest possible delivery, with no delays. For more information, please see here
Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact Forge using the email@example.com email address if you require any more information. We reserve the right to change the delivery service and company at any time.
Forge Motorsport ships via either UPS, FedEx, DHL (primarily for outside of UK), DPD (primarily for UK), or any other courier we chose. Other shipping options may be available for an additional fee over and above the actual shipping costs. Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper however we can assist with most cases.
I'm worried about the remaining heat in the turbo after the engine is shut off. Will/can the turbo blanket cause damage to the turbo due to “heat storage”? By the way, I always let the engine run “cold” before turning it off. Thanks for your answer.
We have not had any issues with heat storage with this or any of our turbo blankets.
Answered 1 month, 3 weeks ago
Hi, can you refit the standard mini r56 metal heat shield over the top of the Forge one for added protection?
Hello , im sorry you can not.
Answered 2 months, 3 weeks ago
Hi Will this fit my 2009 Mini Cooper S N14 I know it probably dose but I just wanted to make sure to save time etc. thanks guys
Thank you for contacting Forge Motorsport, I am happy to inform you that this product will fit your BMW Mini.
Answered 4 months ago
Hi Do you do one of these for the 208 gti 2016-2019 ?
Hello, sorry at this moment in time we do not have a solution for this vehicle year.
Answered 4 months, 3 weeks ago
will this fit a 207 gt thp150
Hello, unfortunately the turbo blanket will not fit your application as the OEM shield is different from the mini.
Answered 7 months, 3 weeks ago
Hi, Will this fit a 2014 DS3 HDI Turbo? Is there any difference between the Ds3 THP turbo and the HDI? Thanks, Dom
Hello , unfortunately the turbo blanket in question will not fit the HDI , the OEM heat shield mounting locations are in different positions. sorry
Answered 8 months, 2 weeks ago
