Valve Spring Tuning Kit

Product code: FMDVTUN
£27.54 Inc. VAT £22.95 Exc. VAT (VAT will be added during the checkout process) Estimate Delivery

Please select options and qty below:

Check your vehicle compatibility

Have A Question? Read Instructions?

Prefer to talk over the phone? Call us +44 1452 380999

Description

Product Description

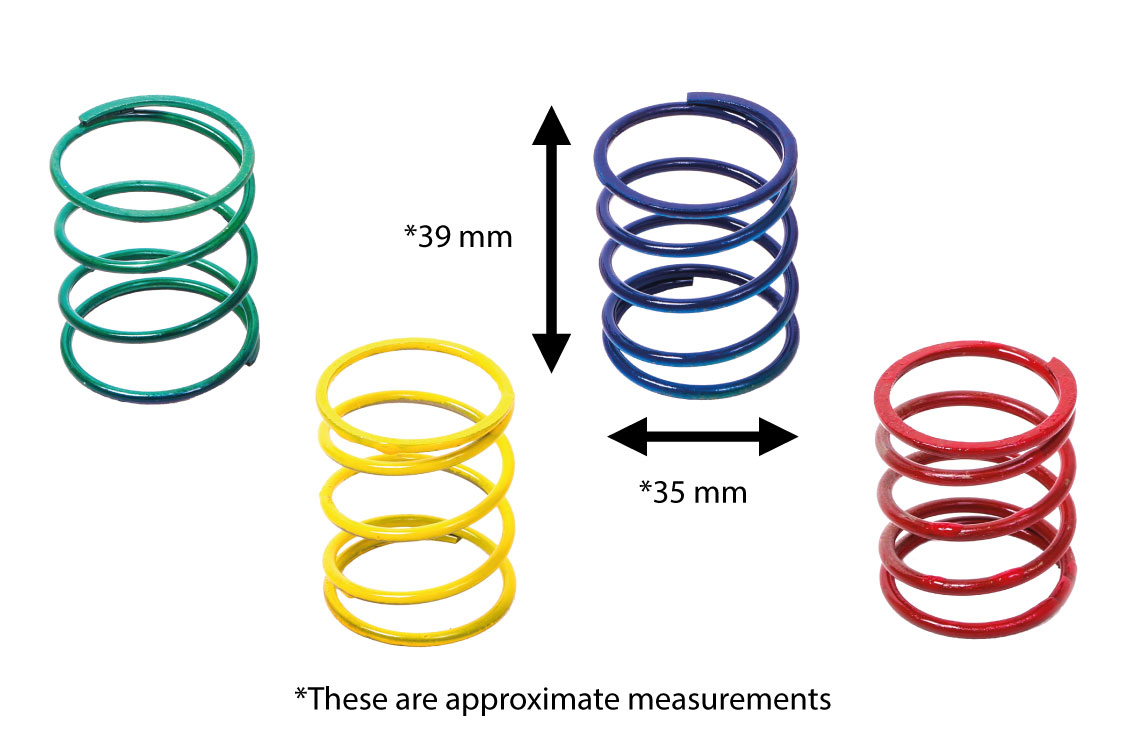

Please check the measurements of your spring against those pictured before purchasing

Now you can fine tune your Blow Off/Diverter Valve to the exact needs of your engine with this complete tuning kit.

If you are finding that the valve is dumping more than required, or if you are losing boost pressure it is normally an indication that a stronger spring is required. Alternatively, if the valve is failing to dump it may be necessary to install a weaker spring.

Please note that fitting a stronger spring into a valve will not increase boost pressure, unless existing pressure is being lost. Failure to allow the valve to operate by installing a spring which is too strong, may cause damage to the turbocharger.

Please also note that the red coded springs should not be installed in the DVR or DV007 diaphragm valves.

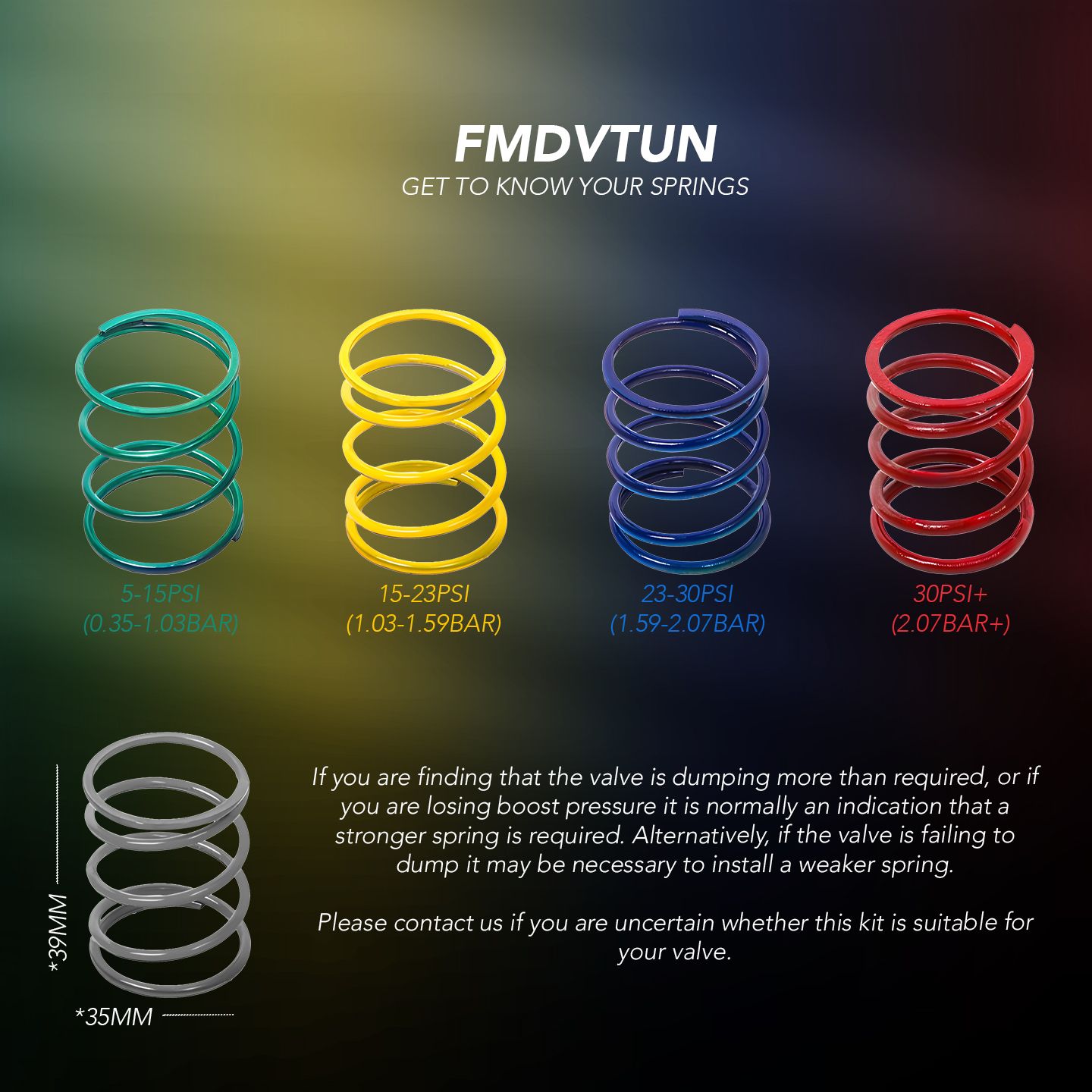

Valve Spring color coding: Green - 5-15 PSI (0.35-1.03 Bar), Yellow - 15-23 PSI (1.03-1.59 Bar), Blue - 23-30 PSI (1.59-2.07 Bar), Red - 30 + PSI (2.07 Bar +)
*The above figures are estimates only and should only be considered as a guideline*

Note: Serious or fatal damage may occur to the engine and associated components if this product is incorrectly matched to the individual engine requirements. Forge Motorsport nor any of it’s authorised distributors can assume any responsibility for any adverse effects resulting from the installation of this product.

Please contact us if you are uncertain whether this kit is suitable for your valve.

*Please Note - The colours of the springs illustrated may differ to what you receive. All spring kits are brand new but are not sprayed. Colour is used as an identifier*



Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.

Product Reviews

Product Reviews

from on Sep 13th 2023 Verified Purchase
Great product to allow you to tune your current dv without buying another dv unit
Reviews.io from on May 7th 2020 Verified Purchase
Great quality well worth the buy will be using forge again
from on Nov 23rd 2018
Product was used and springs scratched. Even the paint has gone. Delivery service was bad as well. No tracking number no proper communication. Overall, I wish I could put below than 1 star.

Sir we apologise for the poor quality spring , I can assure you that it is new , but it had been poorly painted , we have reviewed our paint process and inspection procedure.
We have also changed our method of sending
from on Jun 28th 2018
Good quality strong spring kit. Great value and well packaged item.
from on Feb 7th 2018
Excellent product for tuning the bov and fast service getting these shipped out.
from on Jul 23rd 2017
Excellent informative service and arrived next day
from on Jun 23rd 2016 Verified Purchase
Great product allows to fine fine tune your valve..

Want to leave a review?

Login Register FREE!

Compatible Vehicles

Click the triangles to find your car make and model. Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.

If you need further assistance, please call us on +44 1452 380999 or email us.

Audi
Dodge
Fiat
Mazda
Renault
Rover
Saab
Seat
Skoda
Toyota
Vauxhall
Volkswagen
Volvo

Instructions

Valve Spring Tuning Kit

Warranty

Warranty Infomation

The majority of Forge Motorsport products come with a limited lifetime warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.

For further information, please call our customer service team on +44(0)1452 380999 or email info@forgemotorsport.co.uk.

Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.

This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.

Shipping

Shipping

UK Mainland

Next day delivery applies to orders processed before 12 noon Monday to Friday, subject to stock availability and geographical restrictions. 'Next day' refers to next working day. We cannot guarantee next day delivery for orders placed after this time. Whilst we endeavour to honour our next day service, next day delivery cannot be guaranteed due to other extenuating circumstances. Full details

Delivery is free of charge for all orders £200 (ex VAT) or over. Products are sent by standard DPD service which is usually a next day service, but can take 2 days in transit. We reserve the right to ship smaller, lower value items via Royal Mail or any other service. (Not including Scottish Highlands, Scottish Isles, Northern Ireland, Guernsey, Jersey, and Isle of Man where charges will vary).

Europe and Worldwide

Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and destination postcode. Live shipping rates will be calculated at checkout using ShippyPro and dependent on criteria, you will be given the option of DHL, DPD, or FedEx courier services.

Shipping into the EU - Duty Charge Information

All Forge products are sold with a Delivery Duty Unpaid (DDU) status and an import tariff may apply to your order. Customers will be contacted by the Customs and Excise authority in the destination country regarding payment prior to delivery, and it is important that correct contact telephone number and email information be submitted with the order to facilitate this part of the delivery process. Some couriers are charging an admin fee for shipping into the EU.

If we detect at checkout that you are located within the European Union (EU), you are eligible for a contribution towards your import duty and tax payments. We can add an additional 20% on the total cost of your order, we will then pay the duty and tax costs above your contribution. This offer will ensure the price you pay at checkout is the total you pay, with no additional charges. It will also ensure you have the fastest possible delivery, with no delays. For more information, please see here


Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact Forge using the info@forgemotorsport.co.uk email address if you require any more information. We reserve the right to change the delivery service and company at any time.

Forge Motorsport ships via either UPS, FedEx, DHL (primarily for outside of UK), DPD (primarily for UK), or any other courier we chose. Other shipping options may be available for an additional fee over and above the actual shipping costs. Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper however we can assist with most cases.

FAQ's and other info can be found here.

Expert Answers

Submit Question Cancel
Submitted questions may be published on the website.

Would this fit the BOV for FMDVHFTFSI?

Yes, the valve kit with part number FMDVHFTFSI is compatible with the dump valve spring tuning kit FMDVTUN.

Hi, I am running Evo 6 at 1.45 bar peak with yellow spring fitted to FMDVEVO14. the valve is open at idle and closed under load. Should the valve remain open at idle? Thanks.

Yes, this is normal. The boost port is held shut by the idle piston under tension of the idle spring during engine idle as the main boost piston is sucked up into the top of the valve via the smaller port at the top the of the valve; pressure flow reverts to vacuum when off the throttle via the small port and this is why you see the main boost piston in the open position during idle.

If i run 24 psi what spring should I use? I have green and is weak , maybe blue for 24 psi is just too stiff?

Blue may be a bit too strong; it depends on the model and the associated vacuum pressure.

If you experience wastegate flutter (turbo stall) the fitted spring is too strong; otherwise, if you note power loss in the lower gears at high revs (motorway driving) then the fitted spring is too weak.

Hello. What is the correct configuration of the small (FMTVTUN) and large spring for the FMDV004 valve at a pressure of 1.5 bar? Volvo C70 2,3T T5 Td04h-19T. thanks

Large spring would be yellow.

Hello compatible with FMDV001GTI

Hello yes this product will fit your valve.

Hello there. I have twin BOV on my N54 engine. Currently with yellow springs fitted but the BOVs are wide open at idle. Also if I use moderate throttle for acceleration, I can hear hissing due to BOVs not closing fully. Can you tell me the vacuum rating for each spring, please?

hello , the springs in question do not relate to your blow of valve , please can you give me the part number of the product you have.

Hi there just bought an I30n Proformance forge blow off valve and fit it amd I think the spring that it comes with is a little two harsh or strong as it’s only a quick short burst of blow off was wondering what the recommended spring would be for this vehicle

Hello

The speed of the noise is down to how the valve works with the Hyundai engine. Its side exit design gives all valve for the I30N this sound characteristic.

Hi will these springs fit the blow off valve kit Product code: FMDV12VAG. For the 1.2tsi Seat thanks

Hi William, yes these will fit that valve

Hello with the fmdv rmr which springs are included is the green to 1.03 bar included . or do you have to buy the spring set in addition .Valve Spring Tuning Kit FMDVTUN with the green

The FMDVRMR has the green spring installed off the shelf and the yellow spring is supplied loose with the valve for customers with higher boost pressure requirements.

Green - 5-15 PSI - installed in FMDVRMR.

Yellow - 15-23 PS - supplied loose with each FMDVRMR purchase.

Blue - 23-30 PSI

Red - 30 + PSI

Hello will these springs fit the FMWRX301 valve?

Thank you for your question, yes this is correct for FMWRX301

Hi, stage 2+ k04 tts 8j MK2 what psi spring is it blue ?

Hello

Blue spring is 18PSI running pressure.

for Audi SQ5 b9 3.0 tfsi stage 2 ECU+TCU which spring would be better yellow or blue? for FMDV13R

I would recommend a Yellow spring.

Hi will this fit the fmdv004

Hello yes this kit will fit FMDV004.

Hi there, are these the right springs for the FMDVR60A blow off valve?

Hello

No the spring kit you need is FMTVTUN it is smaller in size and fits the FMDVR60A.

Audi tt mk1 remapped running 16psi which spring colour do I need please

Hello

For stage one tune a Yellow spring is reccomended.

Good day, I have golf 7 gti st2, what spring I mast use?

hello , the spring that should be used is blue.
